SBS JACE 8N4 - Technical data

SBS JACE 8N4 is an open and high-performance automation and integration platform from OAS Open AutomationSystems GmbH (powered by Niagara Framework®). The consistent application of this technology reduces energy and operating costs. Based on the Niagara 4 Framework®, all building services equipment and systems are homogeneously combined into one building automation and management system.

SBS JACE 8N4 Ressources

SBS JACE 8N4 Product brochure     JACE 8000 Data sheet    JACE 8000 Sell sheet    JACE 8000  Frequently Asked Questions



Technical data of the hardware:

  • Hardware specifications

    Hardware specifications

    • TI AM3352: 1000MHz ARM® Cortex™-A8
    • 1GB DDR3 SDRAM
    • Removable micro-SD card with 4GB flash total storage/2GB user storage
    • Wi-Fi (Client or WAP)
    • IEEE802.11a/b/g/n
    • IEEE802.11n HT20 @ 2.4GHz
    • IEEE802.11n HT20/HT40 @ 5GHz
    • Configurable radio (Off, WAP, or Client)
    • WPAPSK/WPA2PSK supported
    • USB type A connector
    • Back-up and restore support
    • (2) isolated RS-485 with selectable bias and termination
    • (2) 10/100MB Ethernet ports
    • Secure boot
    • Supply requirements: 24VAC rated at 24VA minimum, or 24VDC rated at 1A (24W) minimum
    • Runs Niagara AX: 3.8u1 and later
    • Runs Niagara 4: 4.1 and later
    • Niagara Analytics 1.1 requires Niagara AX 3.8u1 or later update builds
    • Niagara Analytics 2.1 is compatible with Niagara 4.4 and 4.6
    • Real-time clock
    • Batteryless

  • Certificate of conformity

    Certificate of conformity

    • UL 916
    • CE EN 61326-1
    • RCM
    • FCC Part 15 Subpart B, Class B
    • FCC Part 15 Subpart C
    • C-UL listed to Canadian Standards Association (CSA)C22.2 No. 205-M1983“Signal Equipment”
    • 1999/5/EC R&TTE Directive
    • CCC
    • SRRC
    • RSS
    • RoHS

  • Environmental specifications

    Environmental specifications

    • Operating temperature: -20–60°C
    • Storage temperature: -40–85°C
    • Humidity: 5%–95% — Non condensing
    • Shipping & vibration: ASTM D4169, Assurance Level II
    • MTTF: 10 years+

SBS JACE 8N4 Features

A modular approach to global design. Tridium has developed a brand new hardware platform optimized for Niagara 4: the SBS JACE 8N4. This "next generation" controller is an outstanding advancement for connecting and controlling devices around the world and features a new global design that can not only be used for legacy systems, but also scaled to meet future needs.

Key Features:

  • Efficient global design

    Efficient global design

    The new, modular design of the SBS JACE 8N4 controller makes it easy to install, integrate and deploy. Tool-less installation with expansion capability reduces installation complexity and improves flexibility. Systems integrators can focus on engineering solutions, not assembling components. And their lives will be simplified with a global power supply and improved access to standard enclosures.

  • Wireless capability

    Wireless capability

    Standard Wi-Fi offers enhanced wireless capability when interfacing with the next generation of wireless sensors and devices. The SBS JACE 8N4 controller also is configurable as an access point so that mobile phones and tablets can display information and advanced graphics. Expansion also is available when interfacing with other wireless fieldbuses seen in connected buildings.

  • Optimized for Niagara 4

    Optimized for Niagara 4

    The SBS JACE 8N4 controller leverages the exciting new features of Niagara 4. It adds to the enhanced user experience, maximizing Niagara 4’s key advantages: pure Web interface based on HTML 5 with HTML 5 views, charting and data visualization, a common design language, better reporting, robust security and improved device management.

  • Global capacity licensing and upgrade capability

    Global capacity licensing and upgrade capability

    Determine the number of devices that will be integrated and select the right capacity license from the start. License upgrades can be purchased in the future as your needs grow.

  • Modular hardware design for fast and easy installation

    Modular hardware design for fast and easy installation

    Controller and option modules are designed for easy mounting on a 35mm-wide DIN rail.

  • Power supply

    Power supply

    24VAC/DC —standard global power supply

  • Intuitive User interface

    Intuitive User interface

    Users can easily check system status by glancing at the front panel LEDs to diagnose network issues.

  • Connectivity Profiles

    Connectivity Profiles

    • Native Wi-Fi capability (WAP or Client) A, B, G or N networks
    • Two 10/100Mb Ethernet ports
    • Two isolated RS 485 ports
    • Optional LO N FTT10 & RS 232 expansion

Expansion module and I/O Configurations

Option modules connect directly to the controller for additional communication ports, including types for LonWorks®, RS232, and RS485 networks.

For more information, see the brochure.

download

  • Communication modules for LonWorks®, RS232 and RS485 / Modbus RTU / BACnet MS/TP networks

    Communication modules for LonWorks®, RS232 and RS485 / Modbus RTU / BACnet MS/TP networks

    Option modules connect directly to the controller for additional communication ports, including types for LonWorks®, RS232 and RS485 networks.


    Supported module types and combinations:

    • NPB-8000-LON (up to 4) for 1 x LonWorks® network per module.
    • NPB-8000-232 (up to 4) for 1 x RS232 network per module
    • NPB-8000-2X-485 (up to 2) for 2x RS485 bus / networks, per module

  • Option module and capacity considerations

    Option module and capacity considerations

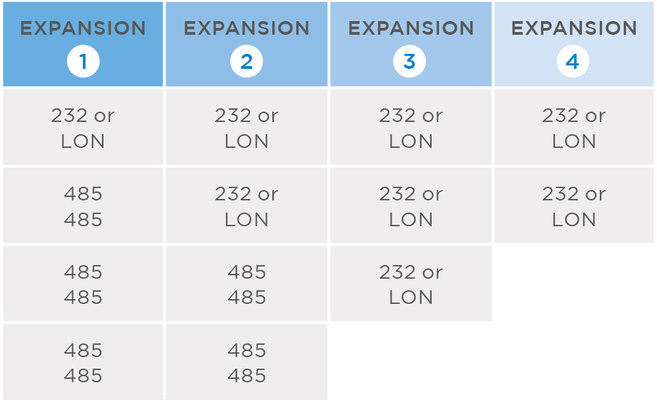

    The controller supports a maximum of four option modules (expansion modules) in certain combinations. If you use two RS485 option modules, you can only use one additional "non-RS485" module (LON or 232), for a total of three. The following figure shows some example combinations.

    The expandability depends on the type of expansion module used.

    Permitted module combinations
    Permitted module combinations

  • Maximum Combinatios

    Maximum Combinatios

    Maximum Expansion (Modules Supported)

    Maximum IO (Modules Supported)*

    • NPB-8000-LON (4)
    • NPB-8000-232 (4)
    • NPB-8000-2X-485 (2)

    • T-IO-16-485 (16)*
    • IO-R-16 (16)*
    • IO-R-34 (8)*

    Maximum Niagara Enterprise Security (Modules Supported)**

    Maximum Niagara Enterprise Security Instrusion Keypads

    • T-SEC-R2R**
    • T-SEC-RIO**

    • SEC-INT-KP (6)


    *Die Konfigurationsdetails finden Sie auf dem Datenblatt für JACE 8000 IO R

    **Jeweils oder kombiniert insgesamt 16

JACE 8000 Controllers Mounting and Dimensions

  • Mounting and Dimensions

    Mounting and Dimensions

    1. JACE 8000 controller. Allow at least 1.5" (38mm) clearance around all sides and minimum 3" (76mm) at bottom for Wi-Fi antenna
    2. Expansion module. Up to four (4) may be used. See "Expansion Module and IO Configurations"
    3. Distances between center of tabs from one unit to another unit
